17x9 / 18x9 / 20x9 / 20x10
5 / 6 / 8 Lug
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
Fuel

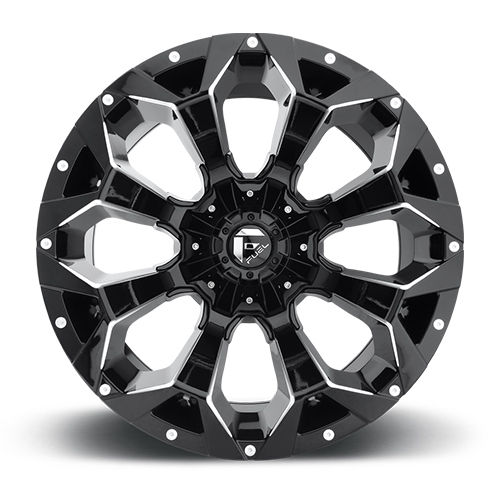

ASSAULT D576 Gloss Black & Milled
Click on a finish in the dropdown below to request a quote:
Sizes & Specifications
| Size | Bolt Pattern | Offset | Hub Bore |
|---|---|---|---|
| 17X9 | 5X114.3/5X127 | -12mm | 78.10 |
| 17X9 | 5X114.3/5X127 | 01mm | 78.10 |
| 17X9 | 6X135/6X139.7 | -12mm | 106.10 |
| 17X9 | 6X135/6X139.7 | 02mm | 106.10 |
| 18X9 | 5X114.3/5X127 | -12mm | 78.10 |
| 18X9 | 5X114.3/5X127 | 01mm | 78.10 |
| 18X9 | 6X135/6X139.7 | 19mm | 106.10 |
| 18X9 | 6X135/6X139.7 | 01mm | 106.10 |
| 18X9 | 6X135/6X139.7 | -13mm | 106.10 |
| 20X9 | 5X114.3/5X127 | 01mm | 78.10 |
| 20X9 | 5X139.7/5X150 | 20mm | 110.10 |
| 20X9 | 5X139.7/5X150 | 01mm | 110.10 |
| 20X9 | 6X135/6X139.7 | 01mm | 106.10 |
| 20X9 | 6X135/6X139.7 | 19mm | 106.10 |
| 20X9 | 8X165.1 | 01mm | 125.10 |
| 20X9 | 8X165.1 | 20mm | 125.10 |
| 20X9 | 8X170 | 01mm | 125.10 |
| 20X9 | 8X170 | 20mm | 125.10 |
| 20X9 | 8X180 | 20mm | 124.20 |
| 20X9 | 8X180 | 01mm | 124.20 |
| 20X10 | 5X114.3/5X127 | -18mm | 78.10 |
| 20X10 | 5X139.7/5X150 | -18mm | 110.10 |
| 20X10 | 6X135/6X139.7 | -22mm | 106.10 |
| 20X10 | 8X165.1 | -18mm | 125.10 |
| 20X10 | 8X170 | -18mm | 125.10 |
| 20X10 | 8X180 | -18mm | 124.20 |
